首頁 » 壹芯微產品中心 » 橋堆 » 插件整流橋

型號	最高反向峰值電壓	最大平均整流電流	最大峰值浪涌電流	最大反向漏電流	正向壓降	典型結電容	封裝形式
	Maximum Peak Reverse Voltage	Maximum Average Rectified Current	Maximum Forward Peak Surge Current@8.3ms Single Halfsine-wave	Maximum Reverse Current	Maximum Forward Voltage	Trpe Junction Capacitance
	Maximum Peak Reverse Voltage	Maximum Average Rectified Current		Maximum Reverse Current	Maximum Forward Voltage	Trpe Junction Capacitance
	VR(V)	IF(A)	IFSM(A)	IR(uA)	VF(V)	CJ(PF)
直插橋式整流器
DB101	50	1	50	10	1.1		DB-1
DB102	100	1	50	10	1.1		DB-1
DB103	200	1	50	10	1.1		DB-1
DB104	400	1	50	10	1.1		DB-1
DB105	600	1	50	10	1.1		DB-1
DB106	800	1	50	10	1.1		DB-1
DB107	1000	1	50	10	1.1		DB-1
DB201	50	2	60	10	1.1		DB-1
DB202	100	2	60	10	1.1		DB-1
DB203	200	2	60	10	1.1		DB-1
DB204	400	2	60	10	1.1		DB-1
DB205	600	2	60	10	1.1		DB-1
DB206	800	2	60	10	1.1		DB-1
DB207	1000	2	60	10	1.1		DB-1
KBP2005	50	2	60	10	1	20	KBP
KBP201	100	2	60	10	1	20	KBP
KBP202	200	2	60	10	1	20	KBP
KBP204	400	2	60	10	1	20	KBP
KBP206	600	2	60	10	1	20	KBP
KBP208	800	2	60	10	1	20	KBP
KBP210	1000	2	60	10	1	20	KBP
KBP3005	50	3	80	10	1		KBP
KBP301	100	3	80	10	1		KBP
KBP302	200	3	80	10	1		KBP
KBP304	400	3	80	10	1		KBP
KBP307	600	3	80	10	1		KBP
KBP308	800	3	80	10	1		KBP
KBP310	1000	3	80	10	1		KBP
KBP4005	50	4	80	10	1.1	25	KBP
KBP401	100	4	80	10	1.1	25	KBP
KBP402	200	4	80	10	1.1	25	KBP
KBP404	400	4	80	10	1.1	25	KBP
KBP406	600	4	80	10	1.1	25	KBP
KBP408	800	4	80	10	1.1	25	KBP
KBP410	1000	4	80	10	1.1	25	KBP
KBPC600	50	6	125	10	1.1	55	KPBC
KBPC601	100	6	125	10	1.1	55	KPBC
KBPC602	200	6	125	10	1.1	55	KPBC
KBPC604	400	6	125	10	1.1	55	KPBC
KBPC606	600	6	125	10	1.1	55	KPBC
KBPC608	800	6	125	10	1.1	55	KPBC
KBPC610	1000	6	125	10	1.1	55	KPBC
KBPC10005	50	10	200	10	1.1		KPBC
KBPC1001	100	10	200	10	1.1		KPBC
KBPC1002	200	10	200	10	1.1		KPBC
KBPC1004	400	10	200	10	1.1		KPBC
KBPC1006	600	10	200	10	1.1		KPBC
KBPC1008	800	10	200	10	1.1		KPBC
KBPC1010	1000	10	200	10	1.1		KPBC
KBPC15005W	50	15	300	10	1.1		KPBC
KBPC1501W	100	15	300	10	1.1		KPBC
KBPC1502W	200	15	300	10	1.1		KPBC
KBPC1504W	400	15	300	10	1.1		KPBC
KBPC1506W	600	15	300	10	1.1		KPBC
KBPC1508W	800	15	300	10	1.1		KPBC
KBPC1510W	1000	15	300	10	1.1		KPBC
KBPC25005	50	25	300	10	1.1		KPBC
KBPC2501	100	25	300	10	1.1		KPBC
KBPC2502	200	25	300	10	1.1		KPBC
KBPC2504	400	25	300	10	1.1		KPBC
KBPC2506	600	25	300	10	1.1		KPBC
KBPC2508	800	25	300	10	1.1		KPBC
KBPC2510	1000	25	300	10	1.1		KPBC
KBPC35005	50	35	400	10	1		KPBC
KBPC3501	100	35	400	10	1		KPBC
KBPC3502	200	35	400	10	1		KPBC
KBPC3504	400	35	400	10	1		KPBC
KBPC3506	600	35	400	10	1		KPBC
KBPC3508	800	35	400	10	1		KPBC
KBPC3510	1000	35	400	10	1		KPBC
KBPC50005	50	50	500	10	1.2	300	KPBC
KBPC5001	100	50	500	10	1.2	300	KPBC
KBPC5002	200	50	500	10	1.2	300	KPBC
KBPC5004	400	50	500	10	1.2	300	KPBC
KBPC5006	600	50	500	10	1.2	300	KPBC
KBPC5008	800	50	500	10	1.2	300	KPBC
KBPC5010	1000	50	500	10	1.2	300	KPBC
KBPC50005W	50	50	500	10	1.2	300	KPBC
KBPC5001W	100	50	500	10	1.2	300	KPBC
KBPC5002W	200	50	500	10	1.2	300	KPBC
KBPC5004W	400	50	500	10	1.2	300	KPBC
KBPC5006W	600	50	500	10	1.2	300	KPBC
KBPC5008W	800	50	500	10	1.2	300	KPBC
KBPC5010W	1000	50	500	10	1.2	300	KPBC
GBP2005	50	2	45	10	1.1		GBP
GBP201	100	2	45	10	1.1		GBP
GBP202	200	2	45	10	1.1		GBP
GBP204	400	2	45	10	1.1		GBP
GBP206	600	2	45	10	1.1		GBP
GBP208	800	2	45	10	1.1		GBP
GBP210	1000	2	45	10	1.1		GBP
GBP3005	50	3	90	10	1.05		GBP
GBP301	100	3	90	10	1.05		GBP
GBP302	200	3	90	10	1.05		GBP
GBP304	400	3	90	10	1.05		GBP
GBP306	600	3	90	10	1.05		GBP
GBP308	800	3	90	10	1.05		GBP
GBP310	1000	3	90	10	1.05		GBP
GBP4005	50	4	110	10	1.05		GBP
GBP401	100	4	110	10	1.05		GBP
GBP402	200	4	110	10	1.05		GBP
GBP404	400	4	110	10	1.05		GBP
GBP406	600	4	110	10	1.05		GBP
GBP408	800	4	110	10	1.05		GBP
GBP410	1000	4	110	10	1.05		GBP
GBU6005	50	6	175	10	1.1	50	GBU
GBU601	100	6	175	10	1.1	50	GBU
GBU602	200	6	175	10	1.1	50	GBU
GBU604	400	6	175	10	1.1	50	GBU
GBU606	600	6	175	10	1.1	50	GBU
GBU608	800	6	175	10	1.1	50	GBU
GBU610	1000	6	175	10	1.1	50	GBU
GBU8005	50	8	170	5	1.1	60	GBU
GBU801	100	8	170	5	1.1	60	GBU
GBU802	200	8	170	5	1.1	60	GBU
GBU804	400	8	170	5	1.1	60	GBU
GBU806	600	8	170	5	1.1	60	GBU
GBU808	800	8	170	5	1.1	60	GBU
GBU810	1000	8	170	5	1.1	60	GBU
GBU10005	50	10	220	10	1.1	70	GBU
GBU1001	100	10	220	10	1.1	70	GBU
GBU1002	200	10	220	10	1.1	70	GBU
GBU1004	400	10	220	10	1.1	70	GBU
GBU1006	600	10	220	10	1.1	70	GBU
GBU1008	800	10	220	10	1.1	70	GBU
GBU1010	1000	10	220	10	1.1	70	GBU
GBU25005	50	25	350	10	1.1	70	GBU
GBU2501	100	25	350	10	1.1	70	GBU
GBU2502	200	25	350	10	1.1	70	GBU
GBU2504	400	25	350	10	1.1	70	GBU
GBU2506	600	25	350	10	1.1	70	GBU
GBU2508	800	25	350	10	1.1	70	GBU
GBU2510	1000	25	350	10	1.1	70	GBU
KBL400	50	4	150	10	1.1		KBL
KBL401	100	4	150	10	1.1		KBL
KBL402	200	4	150	10	1.1		KBL
KBL404	400	4	150	10	1.1		KBL
KBL406	600	4	150	10	1.1		KBL
KBL408	800	4	150	10	1.1		KBL
KBL410	1000	4	150	10	1.1		KBL
KBL6005	50	6	200	10	1.1		KBL
KBL601	100	6	200	10	1.1		KBL
KBL602	200	6	200	10	1.1		KBL
KBL604	400	6	200	10	1.1		KBL
KBL606	600	6	200	10	1.1		KBL
KBL608	800	6	200	10	1.1		KBL
KBL610	1000	6	200	10	1.1		KBL
KBJ4005	50	4	120	5	1	40	KBJ
KBJ401	100	4	120	5	1	40	KBJ
KBJ402	200	4	120	5	1	40	KBJ
KBJ404	400	4	120	5	1	40	KBJ
KBJ406	600	4	120	5	1	40	KBJ
KBJ408	800	4	120	5	1	40	KBJ
KBJ410	1000	4	120	5	1	40	KBJ
KBJ6005	50	6	150	5	1	80	KBJ
KBJ601	100	6	150	5	1	80	KBJ
KBJ602	200	6	150	5	1	80	KBJ
KBJ604	400	6	150	5	1	80	KBJ
KBJ606	600	6	150	5	1	80	KBJ
KBJ608	800	6	150	5	1	80	KBJ
KBJ610	1000	6	150	5	1	80	KBJ
KBJ10005	50	10	170	5	1.05	55	KBJ
KBJ1001	100	10	170	5	1.05	55	KBJ
KBJ1002	200	10	170	5	1.05	55	KBJ
KBJ1004	400	10	170	5	1.05	55	KBJ
KBJ1006	600	10	170	5	1.05	55	KBJ
KBJ1008	800	10	170	5	1.05	55	KBJ
KBJ1010	1000	10	170	5	1.05	55	KBJ
KBJ15005	50	15	200	10	1.05	60	KBJ
KBJ1501	100	15	200	10	1.05	60	KBJ
KBJ1502	200	15	200	10	1.05	60	KBJ
KBJ1504	400	15	200	10	1.05	60	KBJ
KBJ1506	600	15	200	10	1.05	60	KBJ
KBJ1508	800	15	200	10	1.05	60	KBJ
KBJ1510	1000	15	200	10	1.05	60	KBJ
KBU8005	50	8	300	10	1.1		KBU
KBU801	100	8	300	10	1.1		KBU
KBU802	200	8	300	10	1.1		KBU
KBU804	400	8	300	10	1.1		KBU
KBU806	600	8	300	10	1.1		KBU
KBU808	800	8	300	10	1.1		KBU
KBU810	1000	8	300	10	1.1		KBU
KBU10005	50	10	300	10	1.05		KBU
KBU1001	100	10	300	10	1.05		KBU
KBU1002	200	10	300	10	1.05		KBU
KBU1004	400	10	300	10	1.05		KBU
KBU1006	600	10	300	10	1.05		KBU
KBU1008	800	10	300	10	1.05		KBU
KBU1010	1000	10	300	10	1.05		KBU
GBPC15005	50	15	300	10	1.1		GBPC
GBPC1501	100	15	300	10	1.1		GBPC
GBPC1502	200	15	300	10	1.1		GBPC
GBPC1504	400	15	300	10	1.1		GBPC
GBPC1506	600	15	300	10	1.1		GBPC
GBPC1508	800	15	300	10	1.1		GBPC
GBPC1510	1000	15	300	10	1.1		GBPC
GBPC25005	50	25	300	10	1.1		GBPC
GBPC2501	100	25	300	10	1.1		GBPC
GBPC2502	200	25	300	10	1.1		GBPC
GBPC2504	400	25	300	10	1.1		GBPC
GBPC2506	600	25	300	10	1.1		GBPC
GBPC2508	800	25	300	10	1.1		GBPC
GBPC2510	1000	25	300	10	1.1		GBPC
GBPC35005	50	35	400	10	1.2		GBPC
GBPC3501	100	35	400	10	1.2		GBPC
GBPC3502	200	35	400	10	1.2		GBPC
GBPC3504	400	35	400	10	1.2		GBPC
GBPC3506	600	35	400	10	1.2		GBPC
GBPC3508	800	35	400	10	1.2		GBPC
GBPC3510	1000	35	400	10	1.2		GBPC
GBPC50005	50	50	450	10	1.1		GBPC
GBPC5001	100	50	450	10	1.1		GBPC
GBPC5002	200	50	450	10	1.1		GBPC
GBPC5004	400	50	450	10	1.1		GBPC
GBPC5006	600	50	450	10	1.1		GBPC
GBPC5008	800	50	450	10	1.1		GBPC
GBPC5010	1000	50	450	10	1.1		GBPC
W005	50	1	50	10	1		WO
W01	100	1	50	10	1		WO
W02	200	1	50	10	1		WO
W04	400	1	50	10	1		WO
W06	600	1	50	10	1		WO
W08	800	1	50	10	1		WO
W10	1000	1	50	10	1		WO

— 整流橋KBPC5010參數 —

查看詳情立即咨詢

— 整流橋KBPC5010W參數 —

查看詳情立即咨詢

— 整流橋KBPC5008W參數 —

查看詳情立即咨詢

— 整流橋KBPC5008參數 —

查看詳情立即咨詢

— 整流橋KBPC5006W參數 —

查看詳情立即咨詢

— 整流橋KBPC5006參數 —

查看詳情立即咨詢

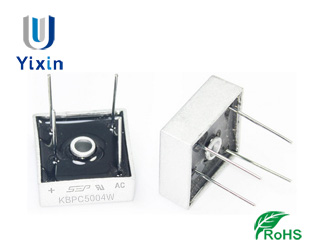

— 整流橋KBPC5004W參數 —

查看詳情立即咨詢

— 整流橋KBPC5004參數 —

查看詳情立即咨詢

— 整流橋KBPC5002W參數 —

查看詳情立即咨詢

— 整流橋KBPC5002參數 —

查看詳情立即咨詢

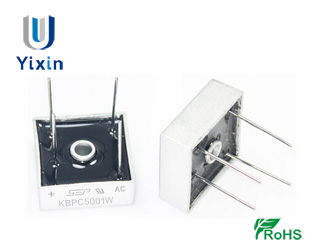

— 整流橋KBPC5001W參數 —

查看詳情立即咨詢

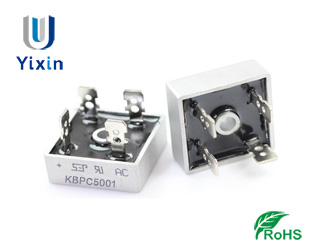

— 整流橋KBPC5001參數 —

查看詳情立即咨詢

記錄總數：205 | 頁數：181 2 3 4 5 6 7 8 9 10 ...>

地址/Address

工廠地址：安徽省六安市金寨產業園區
深圳辦事處地址：深圳市福田區寶華大廈A1428
中山辦事處地址：中山市古鎮長安燈飾配件城C棟11卡
杭州辦事處：杭州市西湖區文三西路118號杭州電子商務大廈6層B座
電話：13534146615 企業QQ：2881579535

深圳市壹芯微科技有限公司二極管·三極管·MOS管·橋堆

Products
center壹芯微產品中心

— 整流橋KBPC5010參數 —

— 整流橋KBPC5010W參數 —

— 整流橋KBPC5008W參數 —

— 整流橋KBPC5008參數 —

— 整流橋KBPC5006W參數 —

— 整流橋KBPC5006參數 —

— 整流橋KBPC5004W參數 —

— 整流橋KBPC5004參數 —

— 整流橋KBPC5002W參數 —

— 整流橋KBPC5002參數 —

— 整流橋KBPC5001W參數 —

— 整流橋KBPC5001參數 —

文章推薦/Recommended News

推薦產品/Recommended products

— P4SMA30AH —

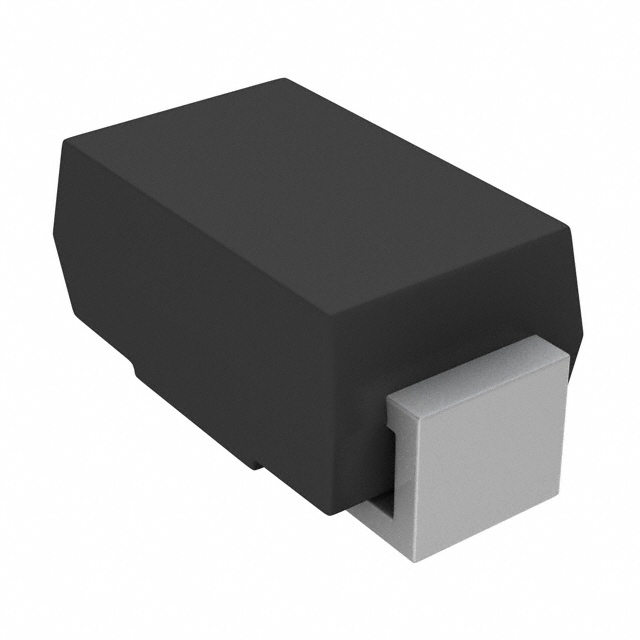

— P4SMA43 —
